Capture the 3rd Dimension

Software Package

TriAngles 3D Scanner, Builder, Viewer and RSD File Editor

3D Scanner will interface with most any camera regardless of the type of connection
In alignment with the latest video standards, 3D Scanner includes video noise reduction filters, area clipping, video enhancement and the ability to record and playback your scans as well as remote control most firewire camera's directly from the software

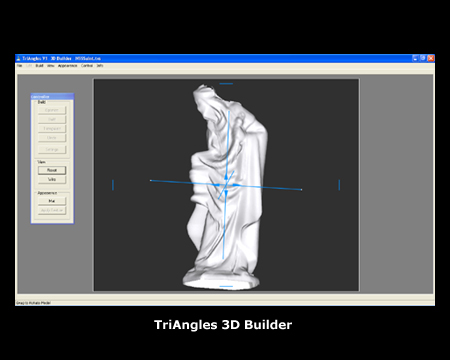

3D Builder builds the raw scan data acquired from the scanner into a 3D model
It incorporates hardware accelerated graphics for real time rendering, auto patching, user defined smoothing, editing and surface softening functionality as well as export to popular formats

3D Viewer is an application that may be freely distributed
It allows you to open and view txs native file format as well as export models to the same selection of file formats as with 3D Builder

Hardware Kit

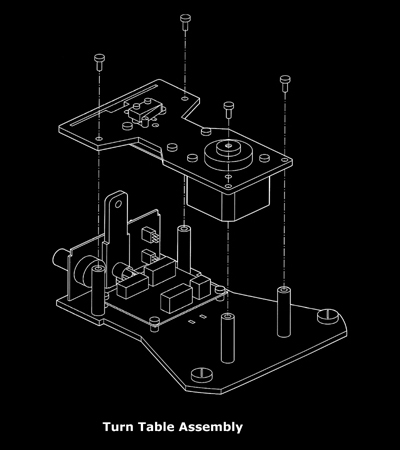

TriAngles also includes a turntable to rotate the object being scanned and a laser support stand to position the laser scan line onto the object
Both are supplied as easy to build kits
The turntable is equipped with a micro step driver delivering consistent speed control
It also includes a latch switch circuit to accurately indicate when the scanned object has made its full rotation
A PC is not required during scan time
The laser support stand holds a highly visible 635nm focus adjustable laser line which can illuminate a wide range of materials
