The GRASP marker is a set of four metal bars
shaped to precise dimensions making them perfect
for a trouble free GRASP 3D scan. The GRASP
marker will ensure that at all times the scan
scene is optimally calibrated without any
hassle.
Features
White coated for easy laser
detection
Black reflection reducing sides
High precision non corrosive
aluminum
Marker lines for easy scan setup
Four sizes to allow for wide scan
range
How does it work?
During a normal GRASP 3D scan setup the user
has to create a marker to be used during the
scan process. By replacing this manually created
marker by the GRASP marker, in most cases a
better scan accuracy and thus scan result can be
created. This is possible due to the accurate
shape of the GRASP markers, the white reflective
surfaces of the marker ensuring the best laser
pickup and the dark non reflective sides that
minimize the chance of a false position
detection.
How to use it?
The GRASP marker is placed in the side of the
view area while setting up a GRASP 3D scan and
replaces the manual marker setup as described in
the manual. The rest of the scan is made and
processed like usual.

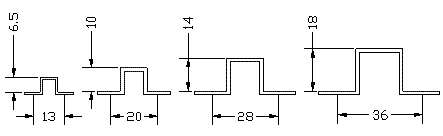

Dimensions
Dimensions in mm, all markers have a length of
300mm
Product Matrix
Set of 4 markers
$50,-
*Prices
are in US Dollars and relate to USA region. Prices
may vary between countries and regions due to
exchange rates, taxes and other costs. Please
contact you nearest distributor for exact details.
